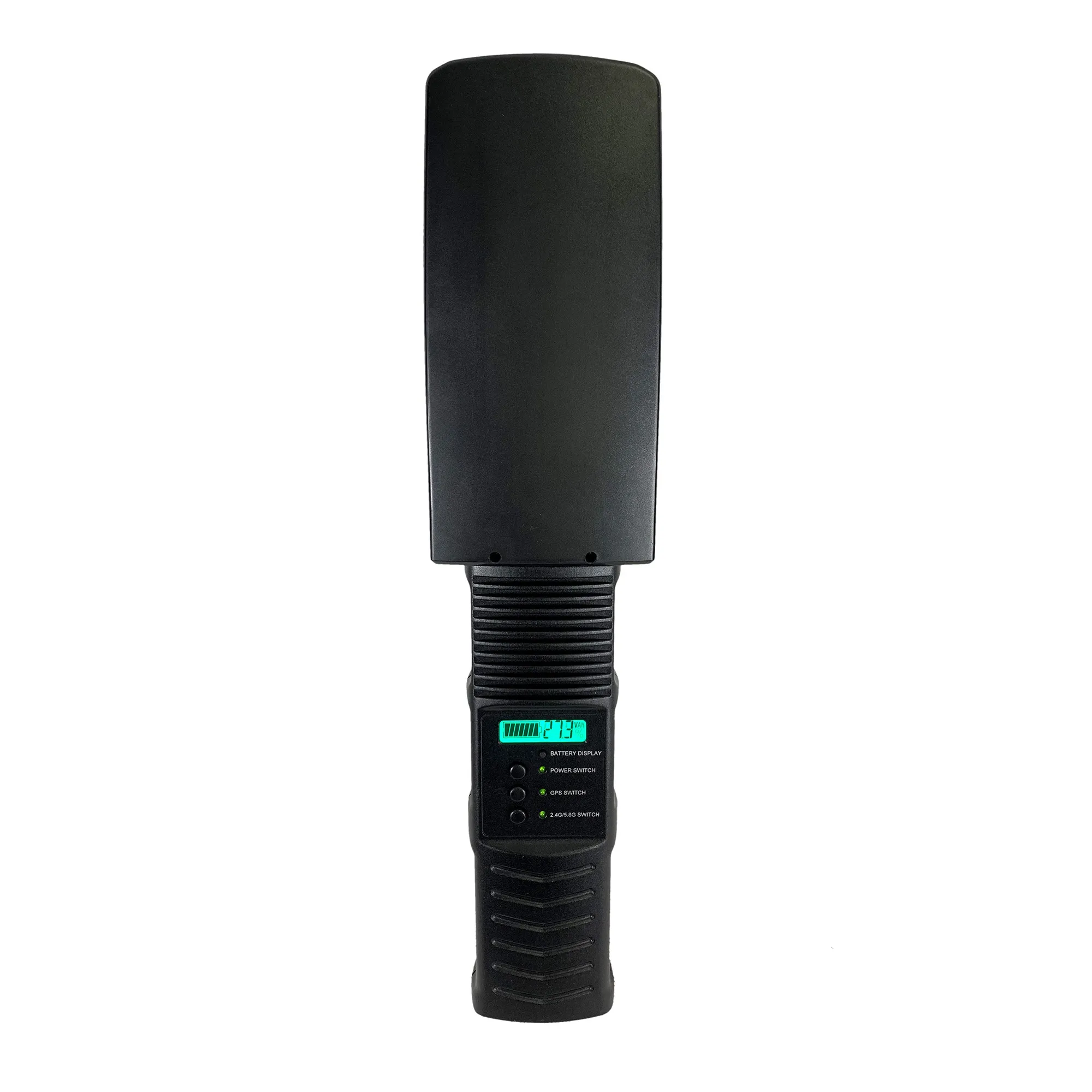

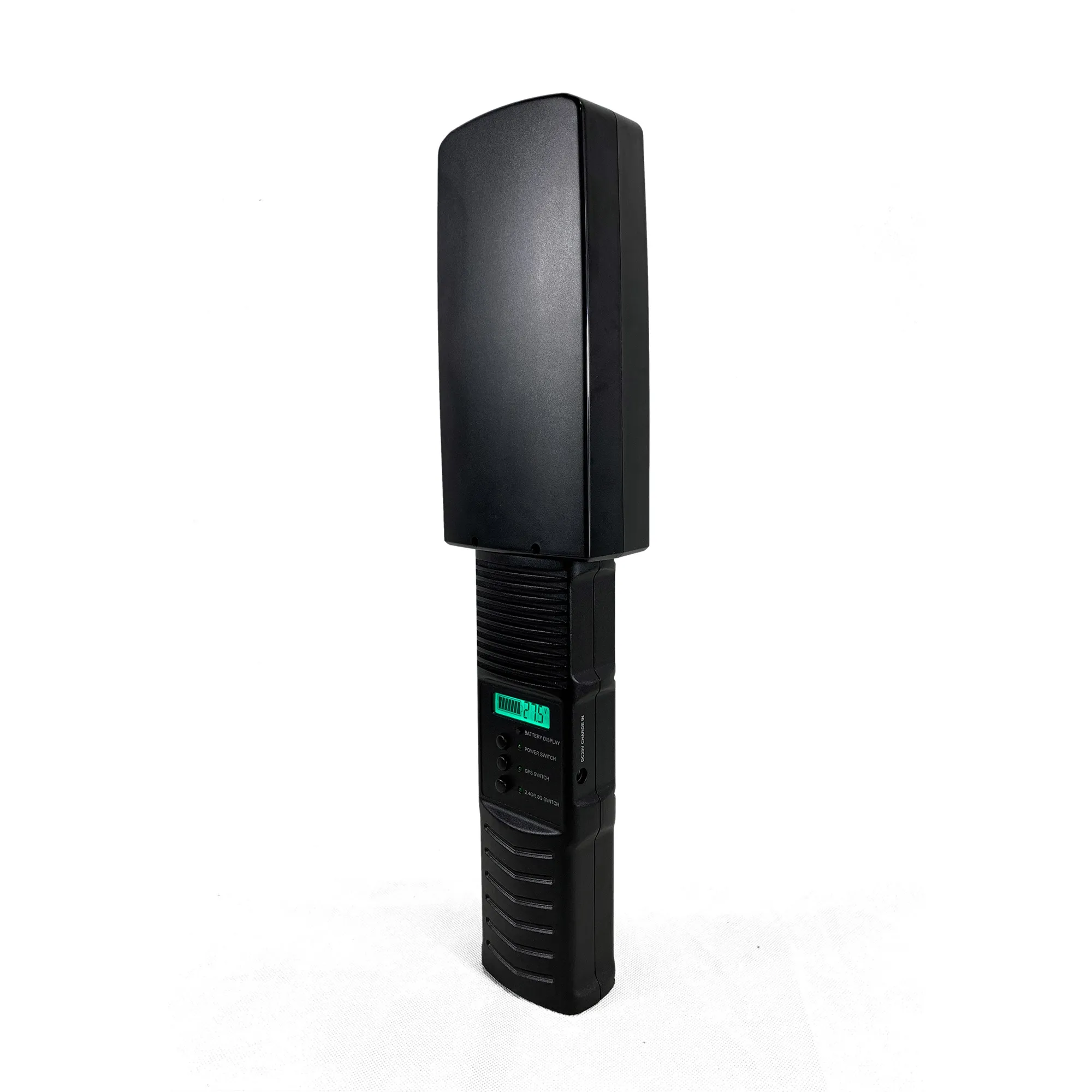

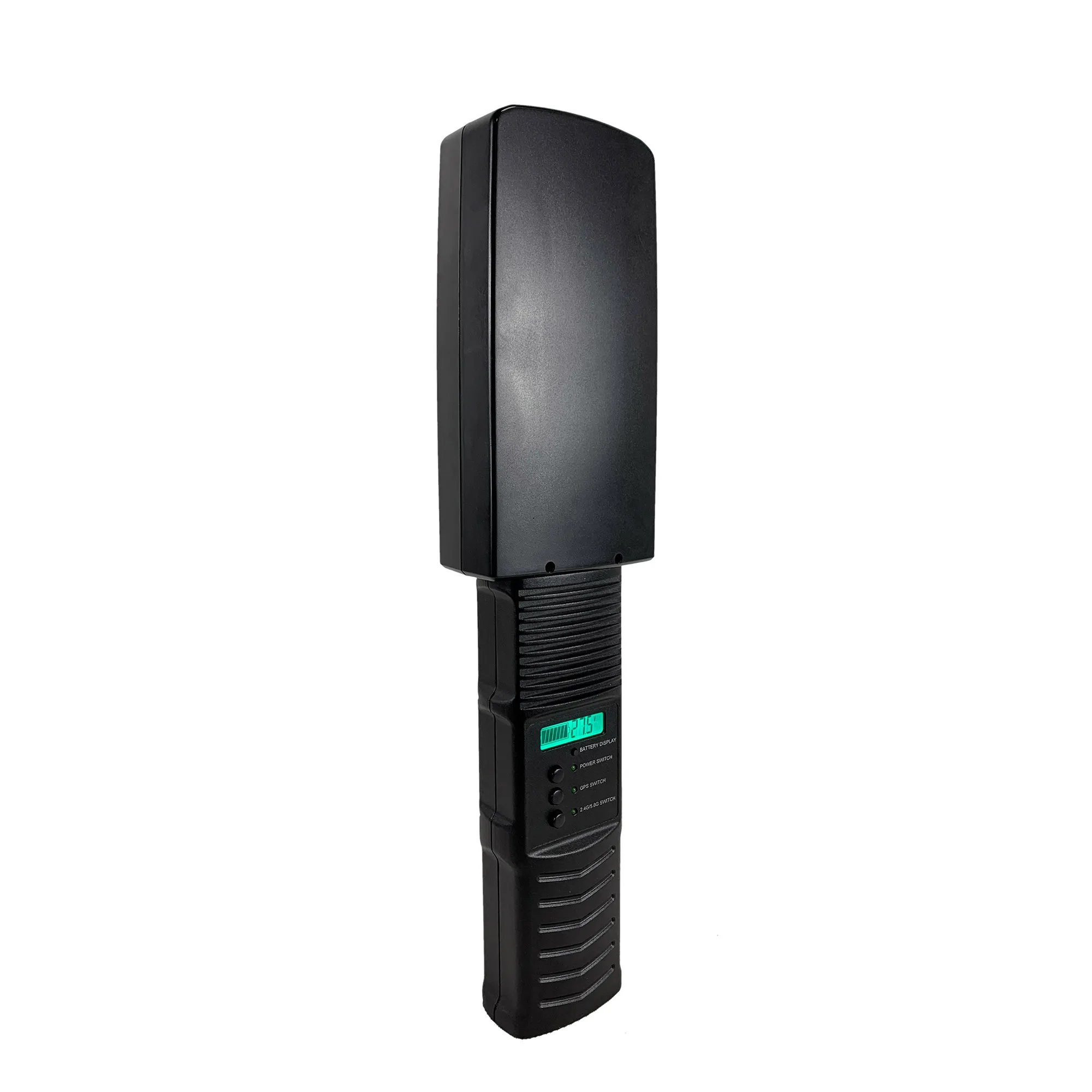

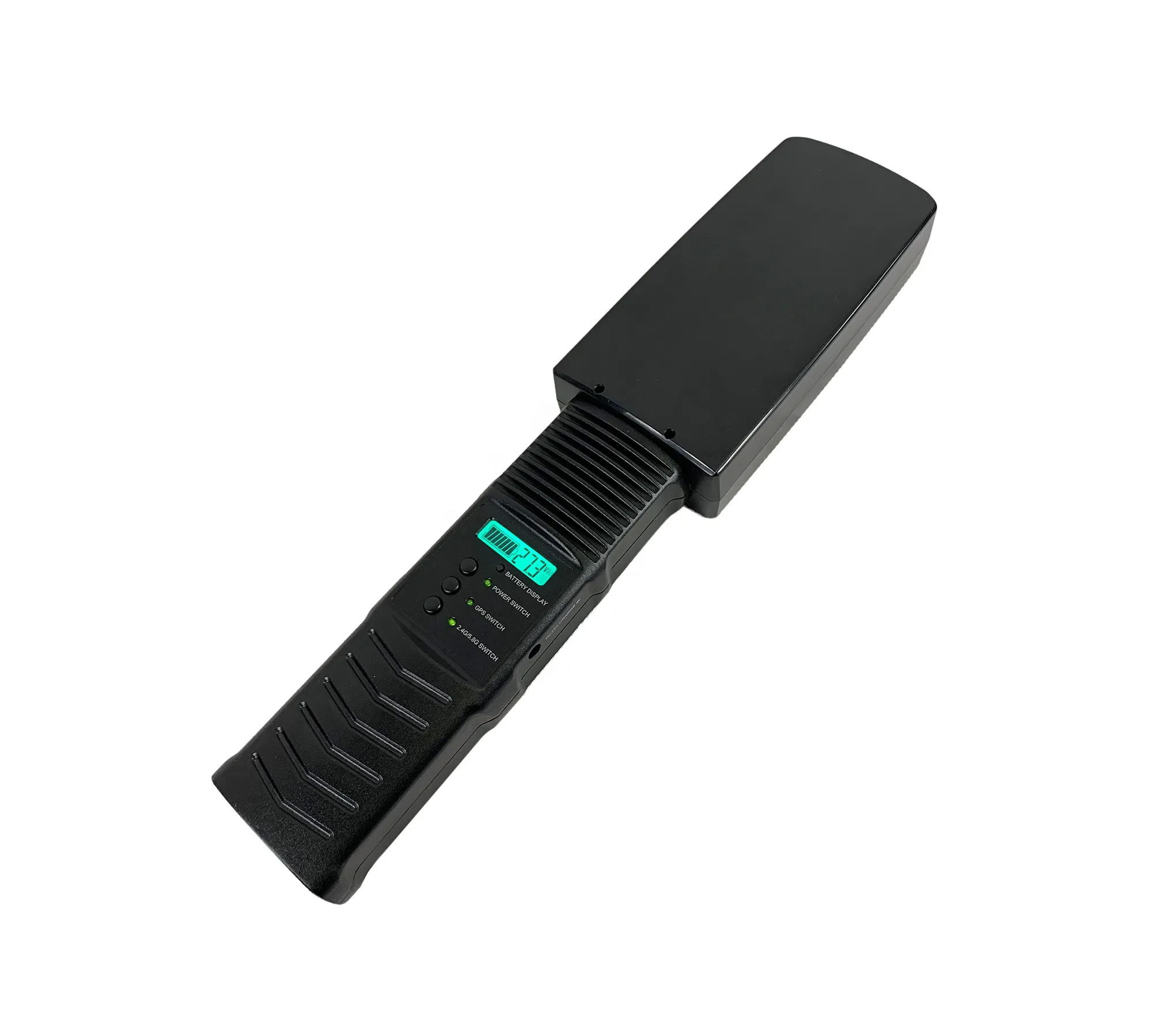

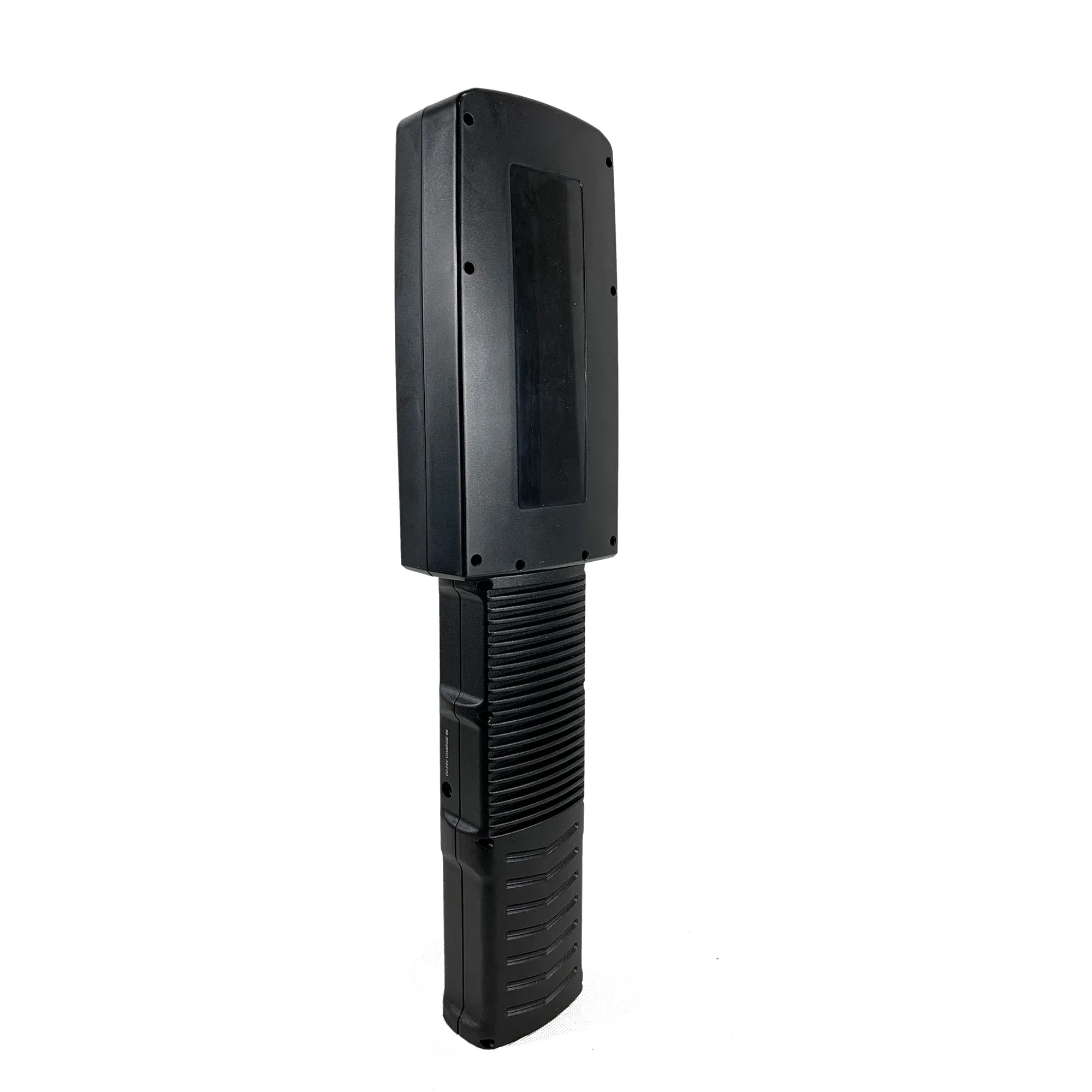

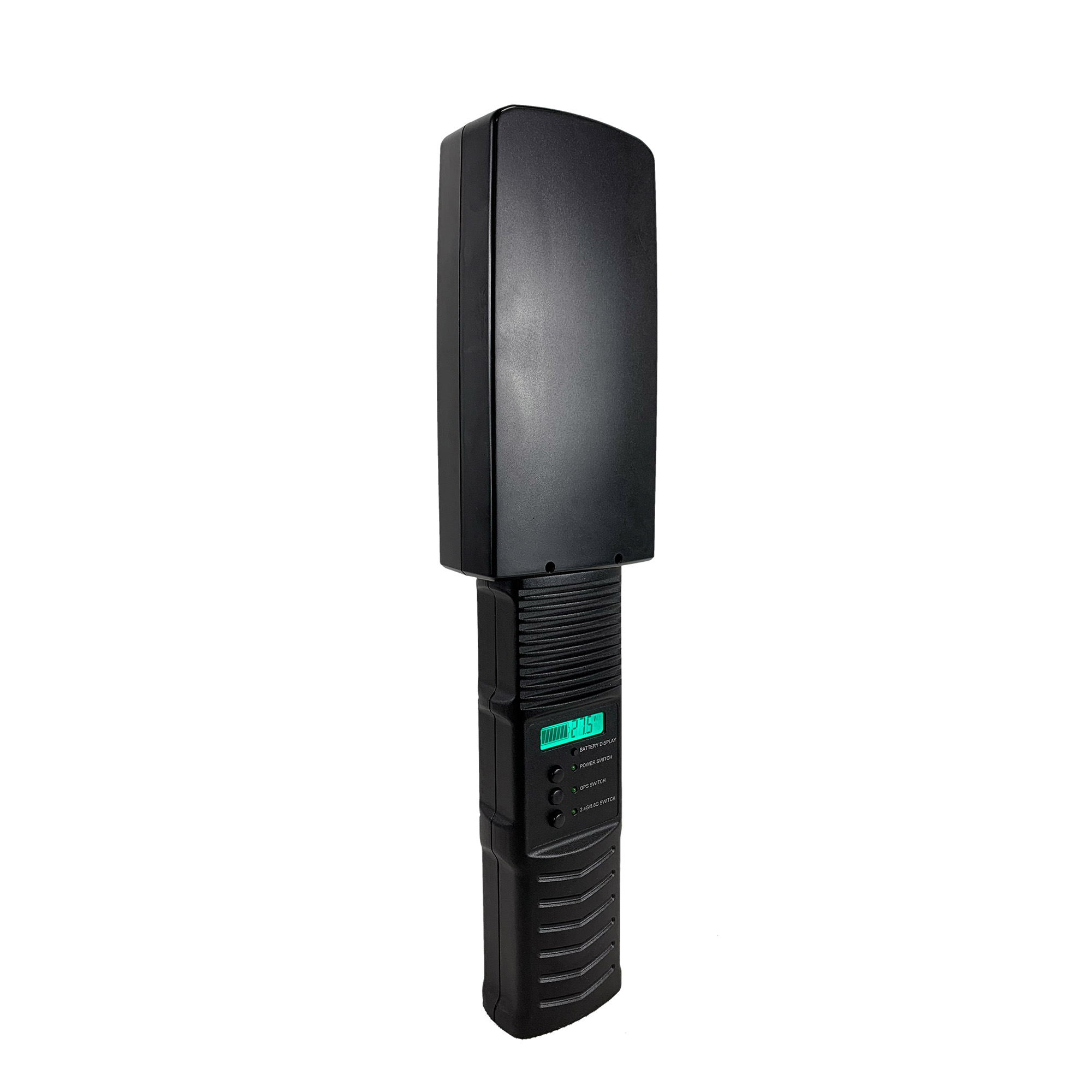

Mini Handheld 500 Meter Power Drone Jammers

Product Information ：

The latest mini handheld all-in-one drone signal jammer with directional antennas for Cover 100% Drones UAVs,Like Dji Phantom 4, Phantom 3 Professional, Advanced, Standard series, Inspire Series...
Light weight portable, build-in high gain 10dbi directional antenna ,Jamming distance 100~500 Meters,Built-in Battery continue working 1.5Hour.

Advantages:
All in one handheld design, Mini size and light weight
Output Power total 20w, Build-in 3-In-One High gain 10dbi directional antenna, shielding 100-500m,Still depends on the distance of drone and remote control.
Each unit can jam up to 3 frequency bands simultaneously, each frequency band is separate and with Power switch to ON or Off, LED indicator lights display Power supply
100% safe VSWR over protection for each modular
Built-in Battery, Operating Time around 60 Minutes

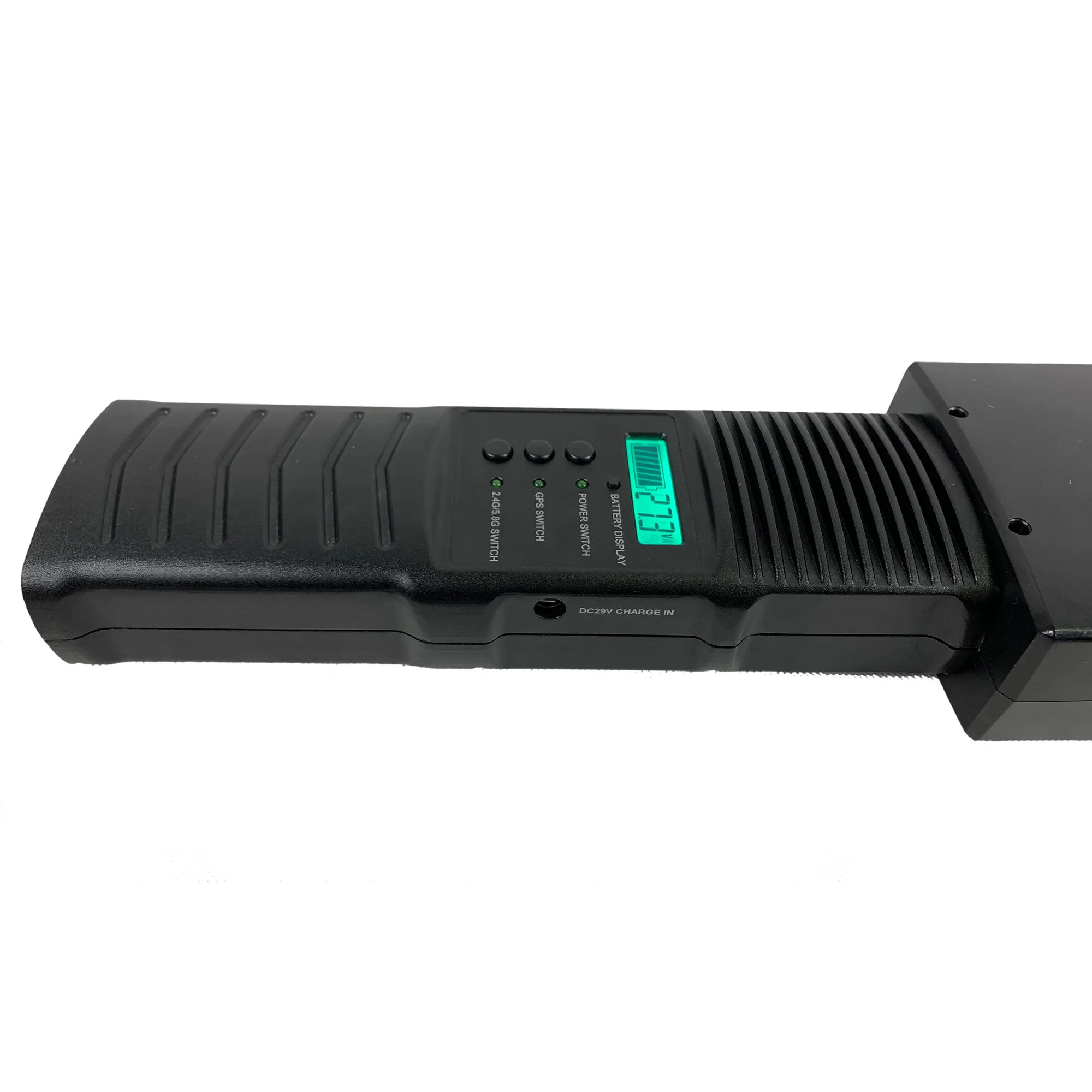

Battery Power and charger status & working Current display via LED screen
Application：
1) Protection of prohibited areas, such as: prison, military management area, national strategic resources projects, nuclear industry facilities, airports, political regions and etc;
2) To prevent the leakage of information on the scene, such as: major criminal cases on-site, urban management law enforcement scene, an important security venues, political followers protection, large-scale performance rehearsal, archaeological excavation site, large groups event site;
3) To combat the use of unmanned aerial vehicles as a carrier of illegal activities, such as: transport / drug trafficking, smuggling, illegal goods or information transmission.

Manufacturer Specifications

-RC2.4G:2400-2500MHz
-RC5.8G:5725-5850MHz
-GPSL1 and Glonass L1:1560-1620MHz
OPTION:
GPSL2+L5 :1170-1280MHz RC 868/912: 868-916MHz

Basic Specifications

Output Power ：Total 20W，5-10W each band
Jam Radius：100-500 meters
Power Supply：AC110-240V to DC24V
Cooling System：High efficiency aluminum alloy radiator
Working Time：Build-in battery: 24V 4Ah Working Time:1.5Hours
Product Size：450*105*60mm
Product Weight: appr.1.5kg

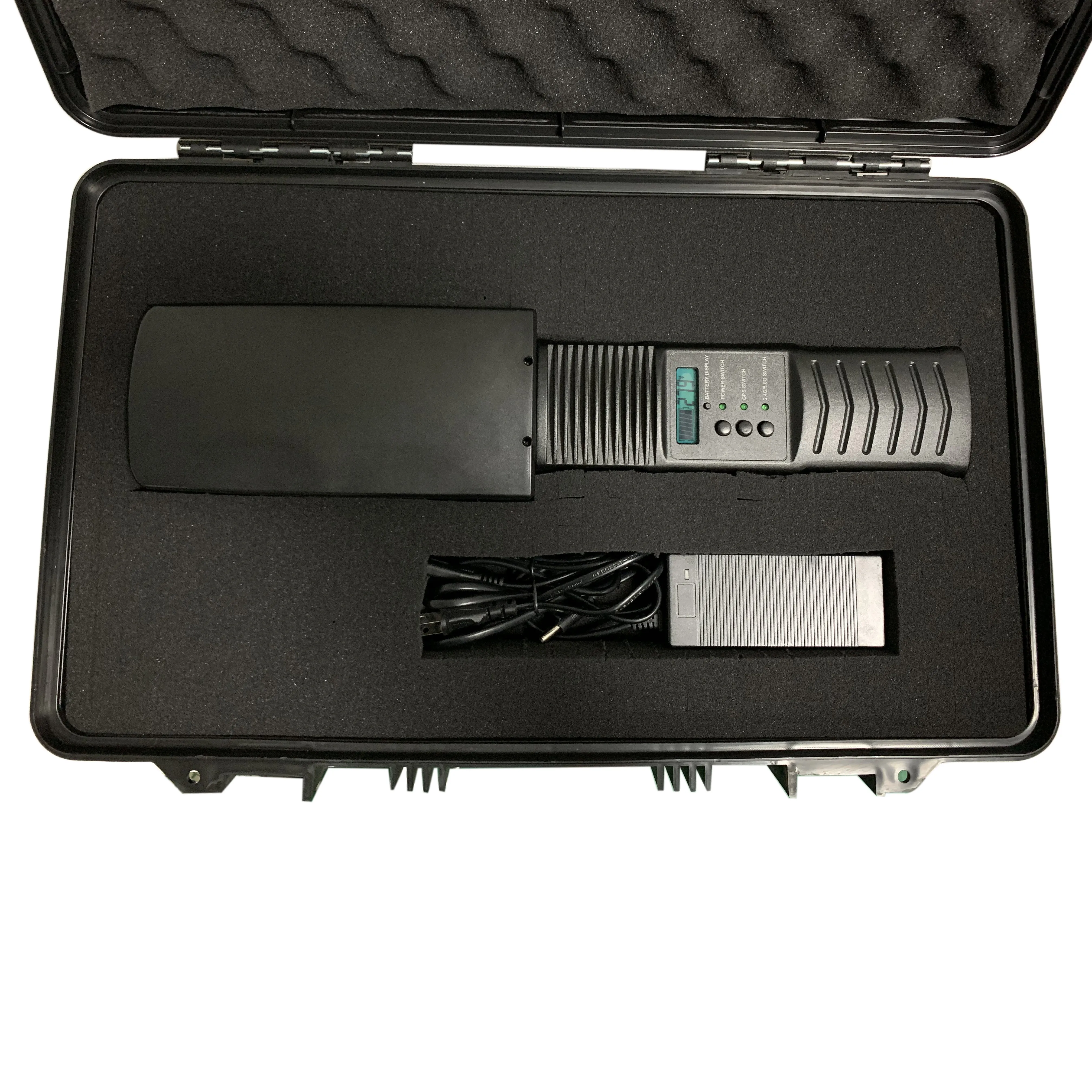

Package Contents:Jammer Host x 1, Battery Charger x1

Note:
1.The jammers are customized according to the frequency bands of different countries, please confirm that the purchase country and the actual use country are consistent. Otherwise it can not be used.Please read the jammer function before purchasing.
2.If the low Power jammers(such as handheld jammers) to blocker Power signal device(such as Power WIFI router, Bluetooth audio equipment, etc.), the effect will be poor or even can not jammer.
3.It is forbidden to use while charging.
4.Do not use handheld jammers as desktop jammers
5.Do not use jammers before connecting the antenna.

Jamming range depends on the signal strength from various sources, as well as local environment conditions.
